Welcome to the Chiller  Science class! In the vapor compression refrigeration cycle, the compressor, condenser, throttling device and evaporator are all indispensable components. Together, they form a closed circulation system. Among them, although the evaporator comes in various forms, it undertakes the core task of absorbing heat from the outside and completing the phase change of the refrigerant, and is the key component in the system that directly outputs cooling. This article will take you to learn about the core functions of the evaporator, its main types and their respective technical characteristics.

Ⅰ.The core heat exchange equipment in the chiller

In the vapor compression refrigeration cycle, the evaporator is the core heat exchange component that realizes the refrigeration effect. Its main functions include:
1. Phase transition completed, efficient heat absorption: The refrigerant in the low-temperature and low-pressure gas-liquid two-phase state that passes through the throttling device is fully evaporated into saturated or slightly superheated gas in the evaporator pipeline. This process absorbs a large amount of latent heat of vaporization, which is the fundamental source of the system's cooling capacity.

2. Cooling refrigerant: The evaporator transfers the cooling capacity to the refrigerant to be cooled (such as air, water, ethylene glycol solution, fluorinated liquid, etc.), and lowers its temperature to the set value, thereby achieving the cooling or freezing effect. In a compression-type chiller system, these refrigerants are usually collectively referred to as circulating liquids.

3. Ensure the safe operation of the system: Through reasonable design, ensure that the refrigerant at the outlet of the evaporator has an appropriate degree of superheat. This not only prevents liquid refrigerant from flowing back to the compressor and causing "liquid strike", but also makes full use of the evaporation heat exchange area, improving energy efficiency and reliability.

II. The Three Main Types of Evaporators
Depending on the type of cooling medium and structural form, evaporators can be classified into the following three categories:
1.Air cooler (air conditioner)
It is most commonly found in various air conditioners, cold storage facilities, and commercial store display cabinets. The refrigerant evaporates inside the coil, and the fan forcibly drives the air to flow over the outer surface of the coil. The cooled air is then directly sent to the space that requires cooling. The structure is compact, the cooling speed is fast, and the system is relatively simple. 2. Liquid cooler (water/liquid-cooled evaporator)
It is mainly used in centralized cooling scenarios such as water chillers and ice water systems. The refrigerant evaporates within the pipes or in the channel of the plates, absorbing the heat from the water or ethylene glycol solution (the cooling medium flowing outside or on the other side) in the pipe, thereby generating low-temperature chilled water. The typical structures include shell-and-tube type and plate type evaporators, which have advantages such as high heat transfer efficiency, stable cooling capacity output, and ease of transporting cooling capacity over long distances through pipelines.

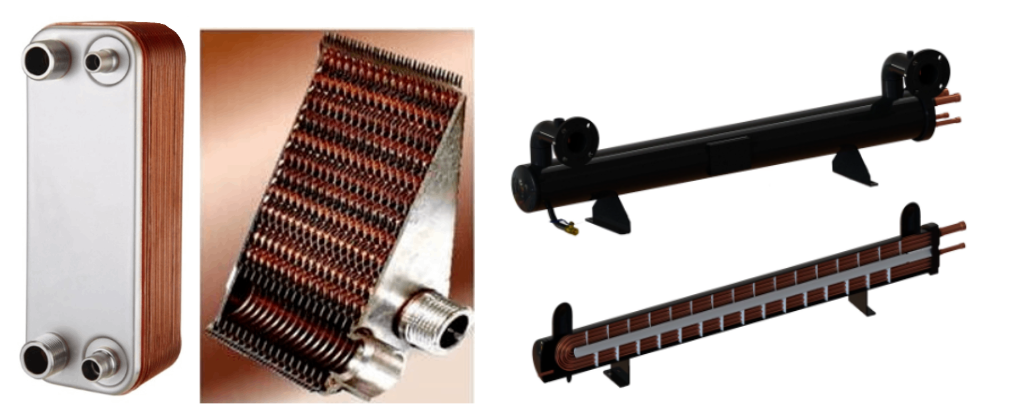

▲ Plate-type evaporator                                      ▲ Shell-and-tube evaporator

3. Tube-type evaporator

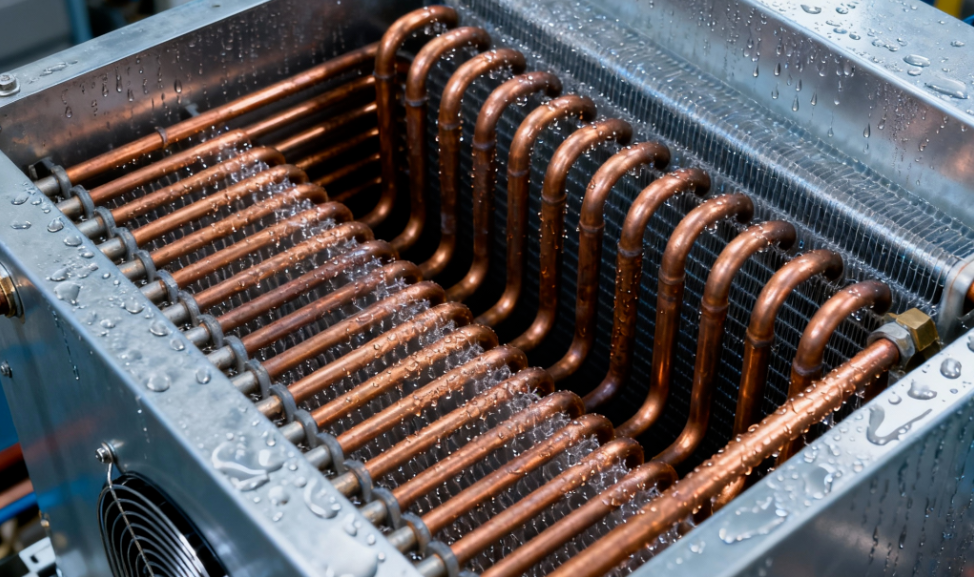

Mainly used in traditional cold storages and low-temperature freezing rooms. It is directly formed by coiling metal pipes (copper pipes, steel plates). It relies on natural convection of air or limited forced convection for heat exchange. The structure is simple, the cold storage capacity is strong, suitable for low temperatures, but the cooling speed is relatively slow, and the refrigerant filling volume is large.

▲ Tube-type evaporator

III. Comparison of Different Evaporator Technical Characteristics
☑️ Air cooler: Easy to install, quick to cool down, suitable for applications such as air conditioners and cold storages where response speed is critical; however, its heat exchange efficiency is relatively low, it is prone to frosting in low-temperature environments, and the energy consumption of the fan is relatively high.
☑️ Liquid cooler: High heat exchange efficiency, stable operation, widely used in data centers, chiller units and other systems; however, it requires a pump and a circulation pipeline, which poses risks of scaling or freezing in winter, and the initial investment cost is also relatively high.
☑️ Tube-type evaporator: Simple structure, strong cold storage capacity, particularly suitable for scenarios with strict requirements for temperature stability such as low-temperature refrigeration warehouses; however, it has low heat exchange efficiency, slow cooling speed, and requires a large amount of refrigerant filling and occupies a considerable amount of space.

In summary, the evaporator is the key terminal that ultimately "delivers" the system's cooling capacity to the users. Choosing the appropriate type of evaporator requires comprehensive consideration of the cooling object (air/liquid), temperature requirements, energy efficiency goals, operation and maintenance costs, and initial investment. The quality of its design directly determines the efficiency, stability, and energy consumption level of the entire refrigeration system.
